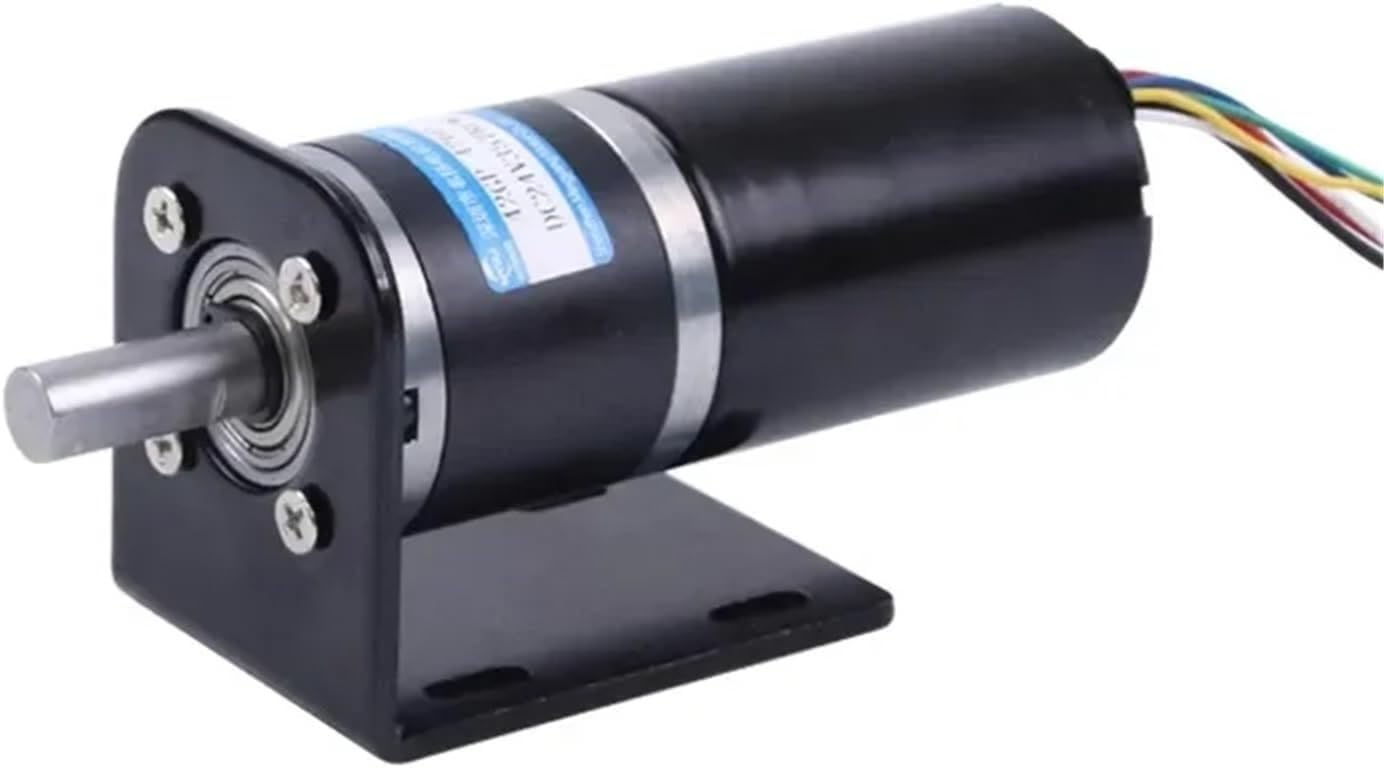

1Pcs 155kgf.cm 7-1351rpm Brushless DC Reduction Motor 12v24v Adjustable Planetary Gear 42GP-4260 High Micro Motor(Motor,71RPM_12V)

Fan MotorsMY42GP-4260 DC Brushless Planetary Gear Reduction MotorBuilt-in driver, turns on immediately when powered onBraking function/speed feedback/reversible/adjustable speedBuilt in driver board: It can be turned on and turned on without the need for a driver board.FG speed feedback: The motor rotates one revolution (before deceleration), and the feedback output (yellow line) is 12 square wave pulses. (Reading requires device support)Voltage: DC12V/24VService life: 30000 hoursSpeed: 7rpm/10rpm/14rpm/19rpm/27rpm/36rpm/50rpm/71rpm/100rpm/185rpm/263rpm/357rpm/962rpm/1351rpmDC12VMaximum rated : 100kgf.cmMaximum load : 200kgf.cmDC24VMaximum rated : 155kgf.cmMaximum load : 300kgf.cmAttention:1. The motor is not allowed to exceed the maximum load (locked rotor) for use.2. Please choose a reasonable power supply (DC 12V/24V) based on the input voltage of the productWhen load =rated , load speed=rated speed. If the actual load exceeds the rated load , the actual output speed will decrease accordingly.4. It is recommended to refer to the rated parameters for selection.When approaching/exceeding the maximum , it may cause internal damage to the motor.6. Lowering the voltage and speed will result in a decrease in output.7. There will be approximately 50db of noise during motor operation, which will vary slightly with changes in speed/loadDefault transportation is 5 wire motorProduct sizeProduct ShootsApplications:==========Hign-concerned Chemical : NoneColor : black : 100kg.cmModel Number : MY-42GP-4260Continuous Current(A) : 1800MAConstruction : Permanent MagnetType : Gear MotorProtect Feature : Totally EnclosedCommutation : BrushlessEfficiency : IE 1Output Power : 30WMax Lode : 300KG.CMproduct NAME : Brushed gear motormetal gear box : planetary structurereduction mo
