500W 36V DC Brushed Electric Motor with Controller Kit for e-Bike Scooter Go Kart Bicycle

Motor:Output: 500WRated speed: 2400-2650 RPMRated voltage: 36V DCRated current: 18ANo-load current: ≤2.0APeak efficiency at 36V: 80 percentReversible: (w/ polarity swap)Sprocket：11 tooth sprocket for #25H chainNote: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Controller:Rated voltage: 36V DCConversion efficency: 95% Under Voltage Protection: 31.5±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 8 connectors, compatible with many 36V bikes with up to 500W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

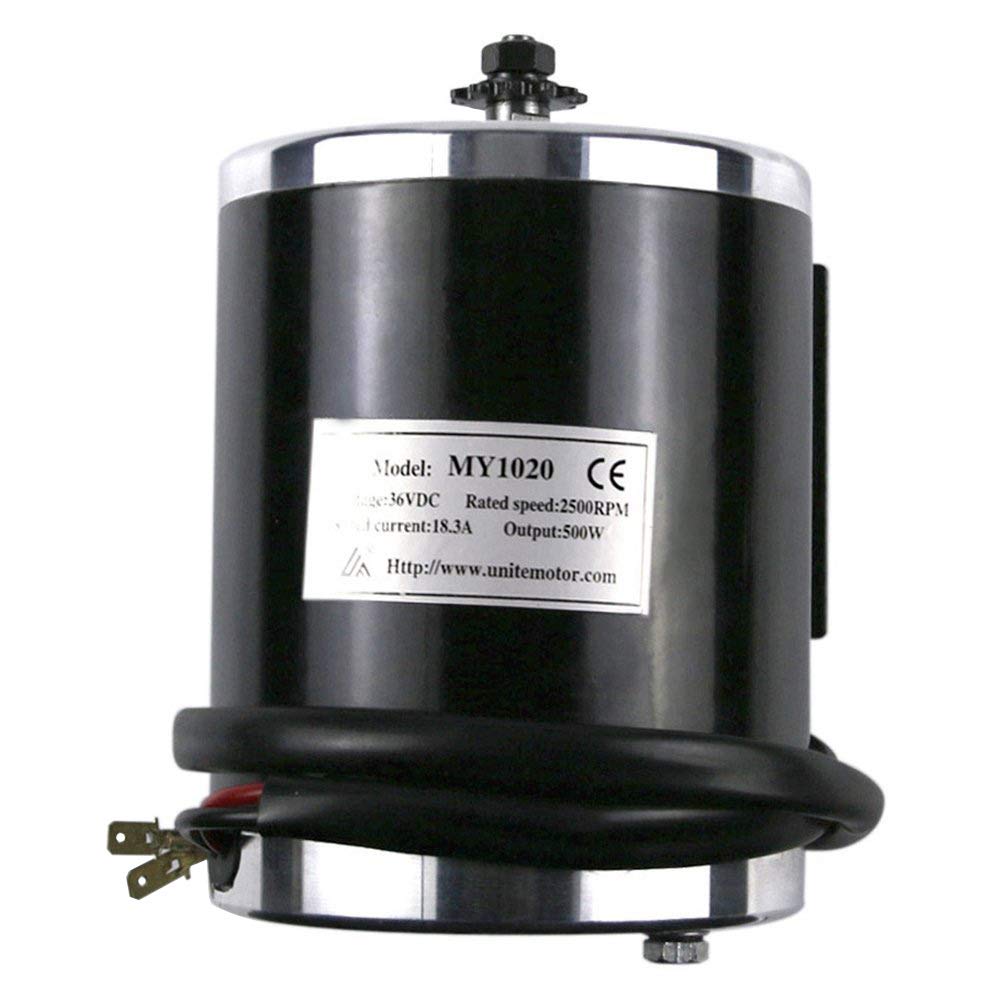

• 500W 36V DC Brush Motor, 2400RPM, 11T 25H chain sprocket, Horsepower: 0.68HP
• Deliver good performance and efficiency at an economical price
• Widely used in diverse applications like electric scooters, bicycles, mini bikes, go kart, etc
• Great adaptability, capable of rotation in either the clockwise or counterclockwise direction
• Package includes: 1x Motor + 1x Controller
