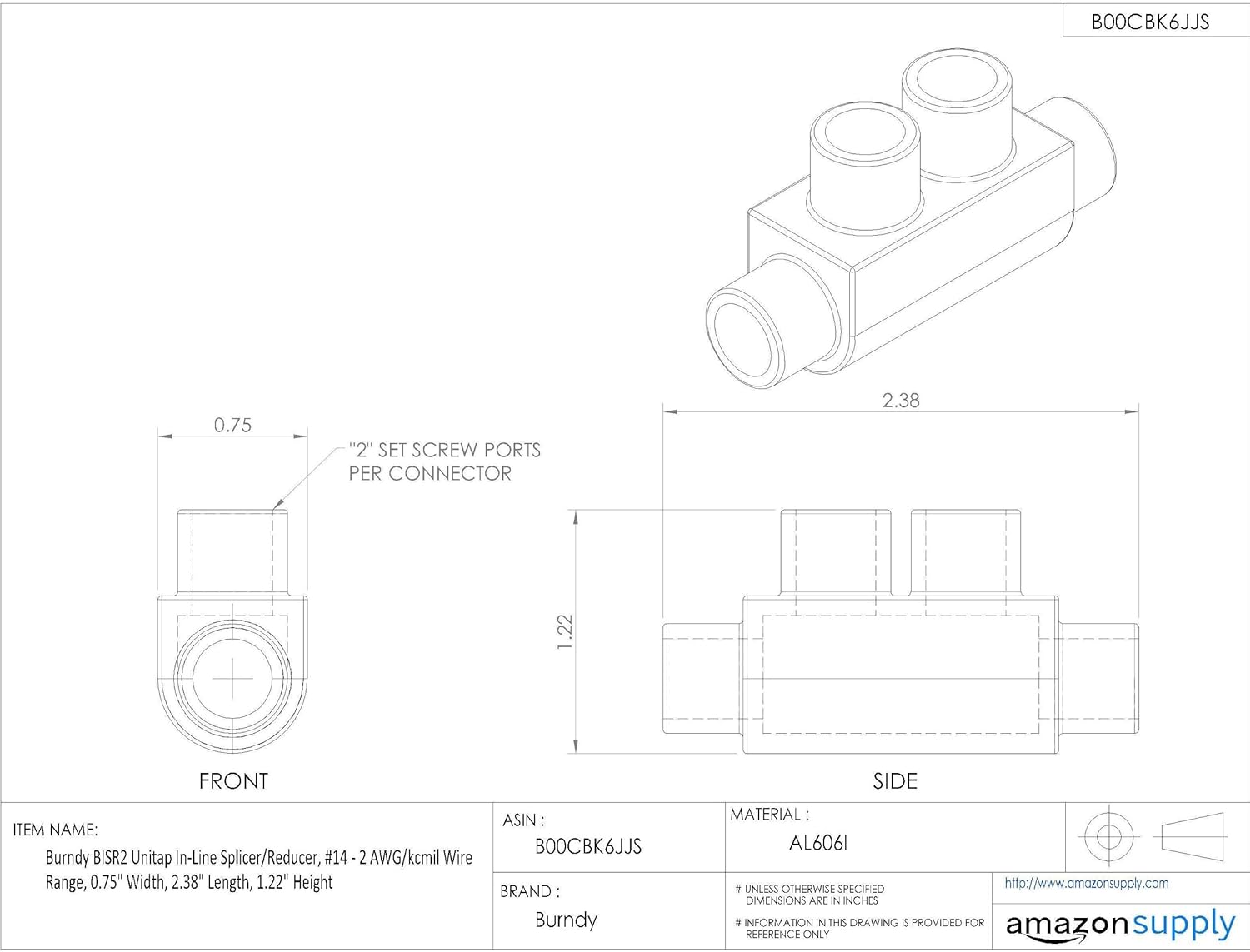

Burndy BISR2 Unitap in-Line Splicer/Reducer, #14-2 AWG/kcmil Wire Range, 0.75" Width, 2.38" Length, 1.22" Height
Product details
| Management number | 211032076 | Release Date | 2026/04/04 | List Price | $8.55 | Model Number | 211032076 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tap connections and in-line splice/reductions are made quickly and easily with the Unitap line of connectors. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90 degrees C. Clear Plastisol. Allows visual confirmation that conductor is properly inserted. Inhibits moisture and contaminants from entering the contact area. Reduces number of connectors carried in inventory. 5/32-inches Hex size.
- Clear Plastisol covered AL6061-T6 aluminum body
- Saves time, lowers installation costs, eliminates taping
- Allows visual confirmation that conductor is properly inserted
- Oxide inhibitor pre-installed
- Range-taking
| UPC | 781810225196 |
|---|---|
| Color | Transparent |
| Model | BISR2 |
| Terminal | Lug Terminal |
| Stud Size | 5/16 |
| Brand Name | Burndy |
| Unit Count | 1.0 Count |
| Item Weight | 22.68 g |
| Manufacturer | Burndy |
| Material Type | Copper |
| Connector Type | Butt Splice |
| Maximum Voltage | 600 Volts |
| Contact Material | Aluminum, Copper |
| Specification Met | CSA, UL |
| Temperature Rating | 90 degree celsius |
| Included Components | Tool |
| Insulation Material Type | Plastisol |
| Item Dimensions L x W x H | 2.38"L x 0.75"W x 1.22"H |
| Global Trade Identification Number | 00781810225196 |
