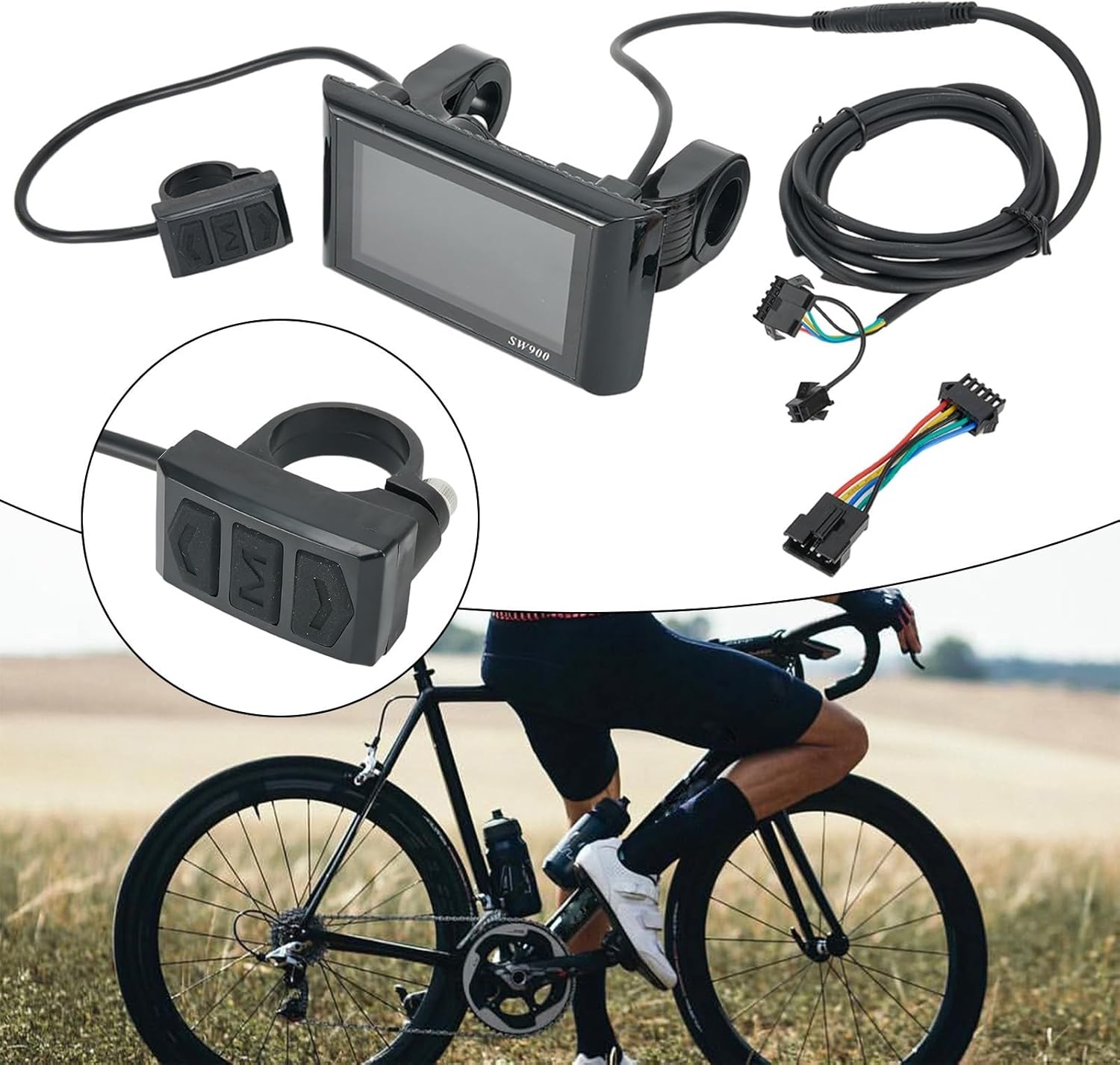

Electric Bike LCD Display, Speedometer and Odometer Cycle Bike Computer with Waterproof Connector for Electric Bike(6pin)

Description:1. Made of material, and practical to use2. Can be automatically identified and compatible 36V and 48V Voltage.3. It will show the true reflection of the battery charge, real time recording of the power consumption to for ENSURE riding mileage.4. The individual joints are clearly set up to help with cost-effective installation.5. When connected to a , this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature.6. The color display on the meter makes it easier for you to see the data on the panel.Instrument setting functionLong press the up button and down button of the meter to enter the meter settings.P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.P02: mileage unit, 0: KM; 1: MILE.P03: Voltage level: 24V, 36V, 48VP04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit is minute.PO5: PAS level: 0, 3-level mode: 1-level 2V, 2-level 3V, 3-level 4V1, 5-level mode: 1-level 2V, 2-level 2.5V, 3-level 3V, 4-level 3.5V, 5-level 4VP06: wheel diameter: unit, inch; accuracy: 0.1.P07: Number of speed measuring magnets: range: 1-100.P08: Speed limit. Range: 0-50km/h, 50 means unlimited. No communication state (controlled by the meter): When the actual speed exceeds the speed we set, the meter will turn off the for PWM output; when it is lower than the speed we set, the meter will automatically turn on the for PWM output, and the driving speed is ±1km/h ; (Speed limit applies to PAS, not accelerator) Communication status (controlled by controller): The driving speed is consistent with the speed we set. Random error: ±1km/h. (Speed limits apply to PAS and Throttle)

• 【Colorful LCD Display】The SW900 LCD Control Panel features a colorful display that makes it easy to see important data on your electric bicycle or scooter. It shows riding speed, time, power, and temperature, providing a wealth of useful information.
• 【Wide Compatibility】This control panel can automatically identify and work with 36V and 48V voltage, offering great compatibility for different electric bikes and scooters.
• 【Accurate Battery Monitoring】With its true battery charge reflection and real-time power consumption recording, the SW900 ensures accurate monitoring of battery status and riding mileage, giving you peace of mind during your rides.
• 【Easy Installation】Featuring clearly set individual joints, the control panel is designed for cost-effective installation, making it convenient for users to set up and start using without hassle.
• 【Customizable Settings】The SW900 provides various settings, including backlight brightness, mileage unit, voltage level, sleep time, PAS level, wheel diameter, number of speed measuring magnets, and speed limit. These customizable features allow users to personalize their riding experience according to their preferences.
